Welcome to your professional skincare routine. The IPPOCARE Microneedling Pen/Electric Derma Pen is designed to enhance product absorption and improve skin texture through precision technology. Please read this guide thoroughly to ensure safe and effective use.

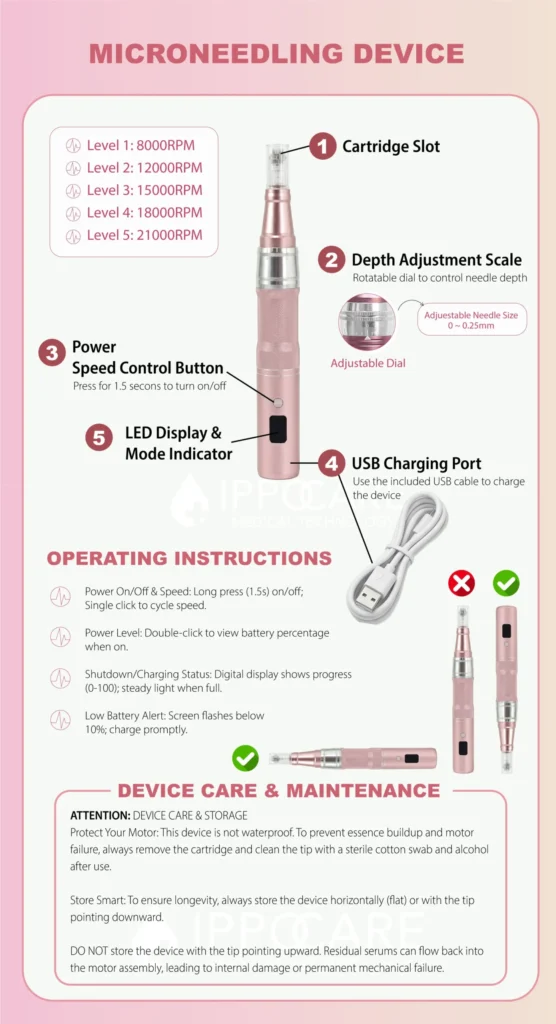

Device Overview & Components
The device features a streamlined design with adjustable intensity and needle depth.
- Needle Cartridge Slot: Where the sterile cartridge is installed.
- Adjustment Scale: Controls the needle depth/height.
- Power/Speed Button: Long press to turn on/off; short press to cycle through speeds.
- Indicator Light: Shows current speed and charging status.
- Charging Port: Connects to the USB charging cable.

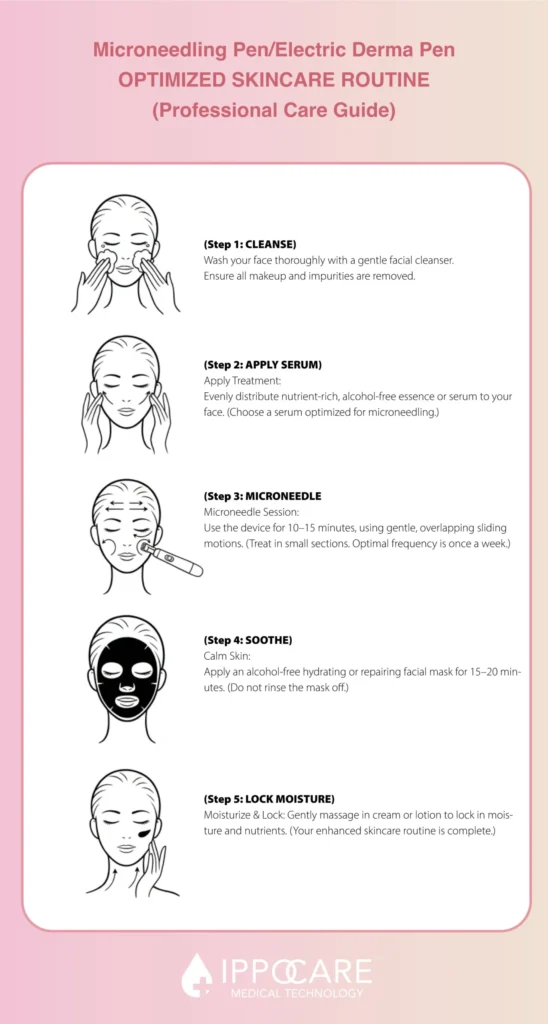

Step-by-Step Operating Instructions
Phase 1: Preparation
Sanitize: Each cartridge is individually vacuum-packed. They are sterile upon opening and do not require additional disinfection.
Cleanse: Thoroughly cleanse your hands and face. Use a gentle facial cleanser or foam to remove all oil and impurities before beginning.
Numb (Optional): If using needles longer than 1.0mm, you may apply a topical numbing cream for 20 minutes, then wipe clean before starting.
Phase 2: The Treatment
Apply Serum: Use a high-quality Hyaluronic Acid or Vitamin C serum as a “slip” to help the device glide.
Set Depth: Twist the adjustment scale to your desired needle length.
Technique: * Vertical/Horizontal/Diagonal: Move the pen in a steady grid pattern. Long-press the power button for 3 seconds to start. Gently glide the device over the skin. Do not stay on one spot for more than 3–5 seconds.
👉 Do Not Drag: Lift the pen slightly if moving between sections to avoid “track mark” scratches.
Duration: Treat for 10–15 minutes total. Your skin should look pink (like a mild sunburn), but not bleeding heavily.
Frequency: For normal skin, we recommend use twice a week. For sensitive skin or those with thin cuticles, once a week is sufficient.
Product Choice: We suggest using high-purity, single-ingredient serums (such as Freeze-Dried Powder, Hyaluronic Acid, Vitamin C, or Hydrating essences). Avoid products containing alcohol.
Sensitivity Test: Before a full treatment, apply a small amount of your chosen serum behind the ear and use the device on a low setting. If no redness or itching occurs after 24 hours, proceed with a full-face treatment.
Note: Cartridges are single-use only. Discard after use to avoid cross-contamination.
Post-Treatment Recovery (Aftercare)
The “Golden 72 Hours” are critical for seeing results:
Avoid: No Retinol, Vitamin C (if skin is raw), or chemical exfoliants for at least 1 week.
Immediate: Apply a sterile, hydrating sheet mask for 20 minutes to cool the skin.
First 24h: Wash only with lukewarm water (no cleansers). Avoid makeup and sweat.
Day 2–7: Your skin may peel or feel dry. Use gentle moisturizers and heavy SPF 30+ sunblock.
Sun Protection: Your skin will be more sensitive to UV rays. Please apply SPF 30+ and avoid direct sunlight for 48 hours.
Redness is Normal: Slight redness or a tingling sensation is normal and usually subsides within 2–24 hours.
Avoid Irritants: Do not use exfoliants (AHAs, BHAs) or Retinol for at least 3 days after treatment.
Microneedle Operation Techniques
How do I operate the device during the treatment?
Choose the method that best suits your skin’s needs:
- Point Pressing (Stamping): After installing the cartridges, press it vertically onto the skin. You will feel a slight resistance; use a “press and lift” motion, adjusting the pressure as needed based on comfort. Best for sensitive areas.
- Sliding: Glide the device across the skin in straight lines. Keep the cartridges in constant motion and do not stay on one spot for more than 3–5 seconds. Avoid exceeding 2 passes on the same area. Move the device in slow, steady lines across the forehead, cheeks, and chin.
- Circular: Move the device in small, overlapping circular motions for deep absorption. Ensure the cartridges remains in contact with the skin surface. Do not stay on a single spot for more than 3–5 seconds and do not exceed 2 passes per area.
How do I adjust the depth and intensity?
For first-time users, we recommend starting at the 0.0–0.5mm setting. Adjust the depth based on your comfort level; if the skin feels fine, you may gradually increase the intensity for better absorption.
The Needle Depth Guide (Comparison Table)
| Treatment Area | Suggested Needle Depth | Recommended Cartridge |
| Forehead / Sensitive Areas | 0.25mm – 0.5mm | Nano / 36-Pin |
| Cheeks / Jawline | 0.5mm – 1.0mm | 36-Pin / 12-Pin |
| Acne Scars / Stretch Marks | 1.0mm – 2.0mm | 12-Pin |
| Lip / Eye Contour | 0.25mm | Nano |
Which products can be used for absorption?
Most professional-grade essences and serums are suitable. You can apply the serum to the entire face first and then use the device, or apply and treat one section at a time.
Can I use multiple products at once?
We do not recommend mixing more than two types of products in a single session. For those with sensitive skin, it is best to stick to one specific product per treatment.
Critical Maintenance & Safety Warnings
⚠️ Prevent Motor Damage (The Backflow Rule)
To protect your device’s precision motor:
- Storage Orientation: Never store the pen with the needle tip pointing up. Residual serum can gravity-feed into the motor, causing it to seize.
- Store Flat: Always store your device horizontally or with the tip pointing down.
- Clean the Channel: After each session, wipe the needle attachment area with a sterile cotton swab and alcohol.
⚠️ Hygiene First
- Single-Use Only: Never reuse or share a needle cartridge. Even with alcohol, needles dull after one use and can harbor bacteria.
- Non-Waterproof: Do not rinse the device under a tap.
Frequently Asked Questions (FAQ)
Normal skin can use it twice a week; sensitive skin or thin cuticles should limit use to once a week.
✨ Nano-needling: 1–2 times per week.
✨ Deep Microneedling (0.5mm+): Once every 4–6 weeks. Your skin needs time to produce new collagen!
The LED indicator or screen shows your speed levels (1–5) and battery life. If it flashes red, please charge immediately using the provided USB-C cable.
Start at 0.25mm or 0.5mm. Only increase the depth once you are comfortable with the technique and know how your skin reacts.
No. Each cartridges is vacuum-packed and sterile. Use immediately upon opening.
Apply a small amount of product behind the ear and use the device. If no redness or itching occurs after 24 hours, proceed with a full face treatment.
It is recommended to wait 24 hours. If your skin is still red or sensitive, stick to basic hydrating skincare and avoid heavy makeup.
Avoid spicy foods, seafood, alcohol, and direct sun exposure for 3 days following the treatment.
No. cartridges are designed for single use only. Once opened, the cartridges begin to oxidize. Reusing a cartridge can lead to the growth of bacteria and the accumulation of dead skin cells/hair, which may cause skin infections or allergic reactions. Always discard the cartridges after one session.
It is highly recommended to use a hydrating mask or a repairing facial mask immediately after treatment. If your skin feels particularly dry, you may follow up with a moisturizing cream or lotion.
Mild redness is a normal reaction to the treatment. We recommend avoiding makeup on the day of the procedure. If your skin remains red or sensitive the following day, continue using basic hydrating products. You may resume your normal makeup routine once any sensitivity has subsided.
For three days following the treatment, please avoid:
👉 Direct and prolonged sun exposure.
👉 Spicy foods, seafood, and alcohol.
👉 Other highly irritating or exfoliating skincare products.
Safety Precautions
- Waterproof Warning: The device is NOT waterproof. Do not allow liquids to enter the device. If essence or liquid enters the internal motor, it may cause the device to jam or malfunction.
- External Cleaning: After use, use a sterile cotton swab to clean the needle channel to prevent serum buildup from clogging the motor.
- Power Input: Use only the certified charging cable. Prohibited use of fast chargers or high-voltage adapters that exceed the device’s rated power to prevent battery damage or fire hazards.
- Charging: Only use the provided USB cable. Do not use the device while it is charging.
- Storage: Store in a cool, dry place. Keep out of reach of children.
- Needle Safety: Do not use if the packaging of the cartridges is damaged. Ensure the cartridge remains in motion during use—do not press hard into the skin.
- Cartridge Disposal Reminder: Single-Use Only! To prevent infection and maintain needle sharpness, please discard the cartridge immediately after one use. Never share cartridges with others.
- Usage Frequency: Do not stay on a single spot for more than 5 seconds or exceed 2 passes per area during one session.
- Initial Charge: We recommend charging the device fully (until the light turns blue/solid) before your first use to ensure a consistent motor speed.
Pro Tip: For the best results, use “pure” serums like Hyaluronic Acid or Vitamin C. Avoid products with heavy fragrances or alcohol during the microneedling process.
